SKF · GENUINEB-16101

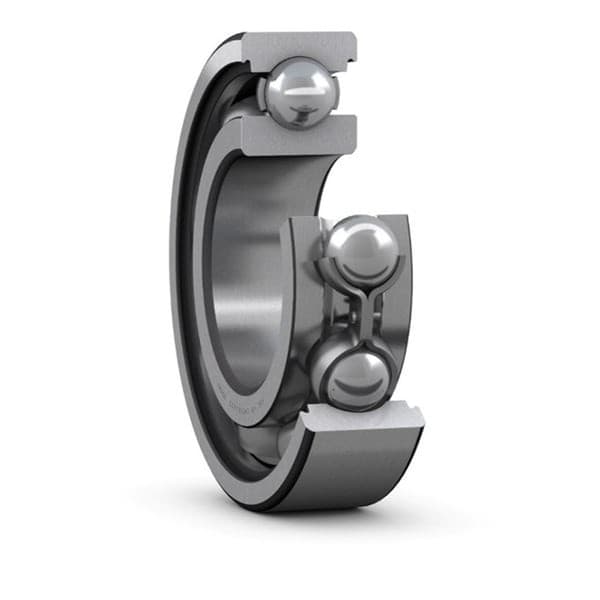

Deep Groove Ball Bearing 16101

SKF designation 16101

Price

Quoted live · in 24h

Quoted in KES
1

Add to your quote basket — no payment now. We reply with a firm price and dispatch ETA within 24h. Pay by M-Pesa, mobile money or LPO once you approve.

Live stock · East Africa network

as of 2026-07-17
NBO
Nairobi
KLA
Kampala
DAR
Dar es Salaam
MWZ
Mwanza

Available — transfers from the network

In stock at Kampala. We transfer across the network and confirm a firm ETA with your quote in under 24h.

Replaces / interchanges

Recommended tool TMMD 100

§02 · Overview

Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.

§03 · Datasheet

Technical specificationSKF verified23 fields

Deep groove ball bearing

  • Simple, versatile and robust design
  • Low friction
  • High-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
BWidth8mm
DOutside diameter30mm
dBore diameter12mm
D₂Recess diameter()24.72mm
d₁Shoulder diameter()17mm
r₁,₂Chamfer dimension(min.)0.3mm
Load ratings3
CBasic dynamic load rating5.07kN
C₀Basic static load rating2.36kN
PᵤFatigue load limit0.1kN
Speed2
Limiting speed38,000r/min
Reference speed60,000r/min
Calculation factors2
f₀Calculation factor13
kᵣMinimum load factor0.03
Mounting / abutment3
DₐDiameter of housing abutment(max.)27.6mm
dₐDiameter of shaft abutment(min.)14.4mm
rₐRadius of shaft or housing fillet(max.)0.3mm
Tolerances & run-out5
Deviation limits of ring width-0.12 – 0 mmmm
Deviation limits of mid-range outside diameter-0.009 – 0 mmmm
Deviation limits of mid-range bore diameter-0.008 – 0 mmmm
ISO tolerance class for dimensionsNormal
ISO tolerance class for geometrical tolerancesNormal
Other2
tKₑₐRange of section height at outer ring of assembled bearing15µm
tKᵢₐRange of section height at inner ring of assembled bearing10µm
