SKF · GENUINEB-16002

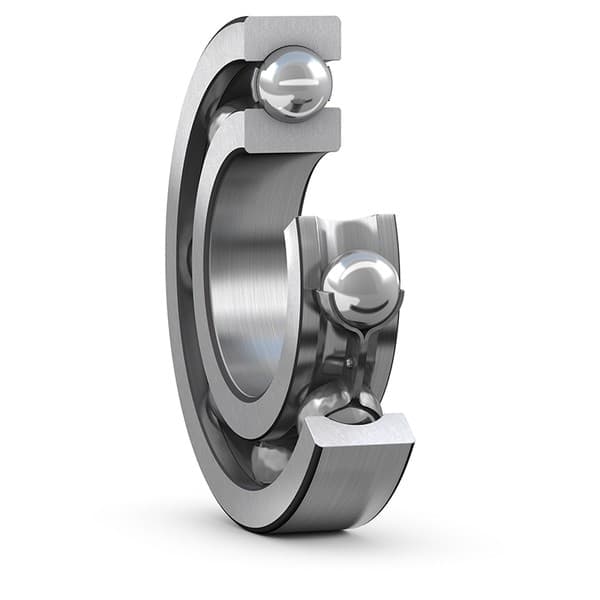

Deep Groove Ball Bearing 16002
SKF designation 16002
Price
Quoted live · in 24h
1
Add to your quote basket — no payment now. We reply with a firm price and dispatch ETA within 24h. Pay by M-Pesa, mobile money or LPO once you approve.
Live stock · East Africa network
as of 2026-07-17—
NBO
Nairobi
✓
KLA
Kampala
—
DAR
Dar es Salaam
—
MWZ
Mwanza
Available — transfers from the network
In stock at Kampala. We transfer across the network and confirm a firm ETA with your quote in under 24h.
§02 · Overview
Single row deep groove ball bearings are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
§03 · Datasheet
Technical specificationSKF verified28 fields
Deep groove ball bearing
- Simple, versatile and robust design
- Low friction
- High-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
BWidth8mm
DOutside diameter32mm
dBore diameter15mm
D₂Recess diameter(≈)28.2mm
d₁Shoulder diameter(≈)20.5mm
r₁,₂Chamfer dimension(min.)0.3mm
Load ratings3
CBasic dynamic load rating5.85kN
C₀Basic static load rating2.85kN
PᵤFatigue load limit0.12kN
Speed2
Limiting speed32,000r/min
Reference speed50,000r/min
Calculation factors2
f₀Calculation factor14
kᵣMinimum load factor0.02
Mounting / abutment3
DₐDiameter of housing abutment(max.)30mm
dₐDiameter of shaft abutment(min.)17mm
rₐRadius of shaft or housing fillet(max.)0.3mm
Tolerances & run-out9
tSDPerpendicularity of outer ring outside surface4µm
tSdMaximum run-out of inner ring side face to the bore7µm
tSₑₐMaximum axial run-out of outer ring of assembled bearing8µm
tSᵢₐMaximum axial run-out of inner ring of assembled bearing7µm
Deviation limits of ring width-0.06 – 0 mmmm
Deviation limits of mid-range outside diameter-0.009 – 0 mmmm
Deviation limits of mid-range bore diameter-0.007 – 0 mmmm
ISO tolerance class for dimensionsP6 and tighter width tolerance
ISO tolerance class for geometrical tolerancesP5
Other3
tKₑₐRange of section height at outer ring of assembled bearing7µm
tKᵢₐRange of section height at inner ring of assembled bearing4µm
SKF performance classSKF Explorer
