SKF · GENUINEB-1201 ETN9

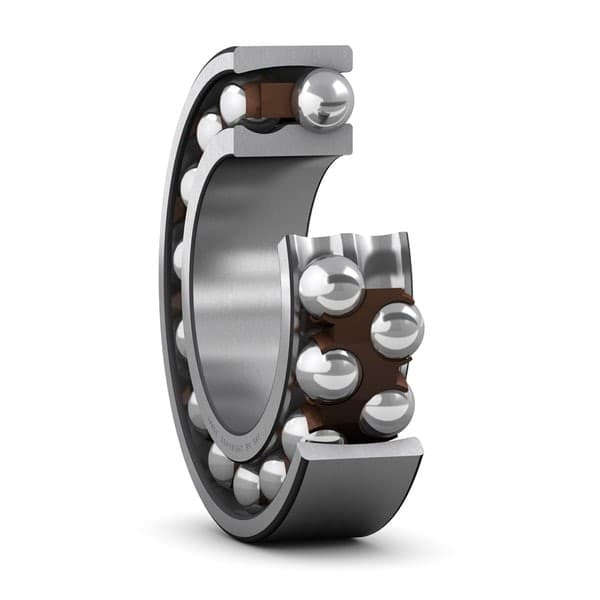

Ball Bearing 1201 ETN9
SKF designation 1201 ETN9
Price
Quoted live · in 24h
1
Add to your quote basket — no payment now. We reply with a firm price and dispatch ETA within 24h. Pay by M-Pesa, mobile money or LPO once you approve.
Live stock · East Africa network
as of 2026-07-17—
NBO
Nairobi
✓
KLA
Kampala
—
DAR
Dar es Salaam
—
MWZ
Mwanza
Available — transfers from the network
In stock at Kampala. We transfer across the network and confirm a firm ETA with your quote in under 24h.
§02 · Overview
Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
§03 · Datasheet
Technical specificationSKF verified21 fields
Self-aligning ball bearing
- Accommodate static and dynamic misalignment
- Excellent high-speed performance
- Excellent light load performance
- Low friction
BWidth10mm
DOutside diameter32mm
dBore diameter12mm
D₁Shoulder diameter outer ring(≈)25.7mm
d₁Shoulder diameter inner ring(≈)18.2mm
r₁,₂Chamfer dimension(min.)0.6mm
Load ratings3
CBasic dynamic load rating6.24kN
C₀Basic static load rating1.43kN
PᵤFatigue load limit0.072kN
Speed2
Limiting speed32,000r/min
Reference speed50,000r/min
Calculation factors6
eLimiting value0.33
Y₀Calculation factor2
Y₁Calculation factor1.9
Y₂Calculation factor3
kᵣCalculation factor0.04
Permissible angular misalignment2.5°
Mounting / abutment3
DₐAbutment diameter housing(max.)27.8mm
dₐAbutment diameter shaft(min.)16.2mm
rₐFillet radius(max.)0.6mm
Other1
CylindricalBore type
